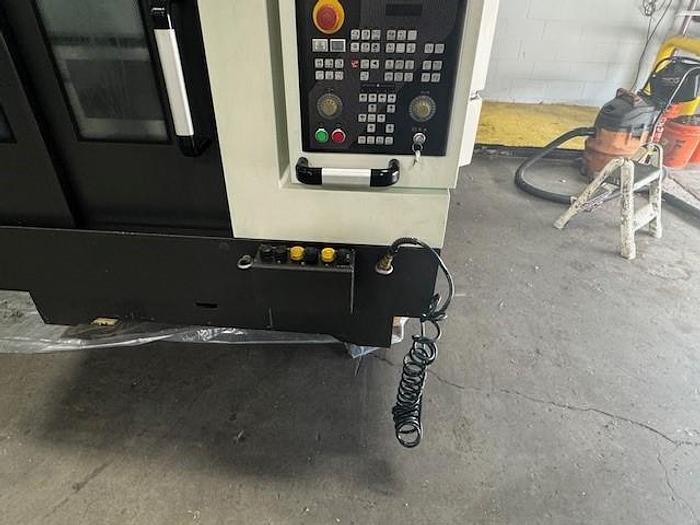

Hyundai ICut 400TD CNC Vertical Machining Center (2017)
Hyundai ICut 400TD CNC Vertical Machining Center (2017)
Available quantity:1
orCall +1 508-792-4305
Description
Unit Includes, Mastertech High Pressure Coolant Unit, Hydraulic Core Pull & 35 KVA Transformer
Specifications
| Manufacturer | Hyundai |
| Model | Wia ICut400TD |
| Year | 2017 |
| Condition | Used |
| Stock Number | 12924 |
| Number of Tables | 2 (Dual Table) |
| Table Size | 25.6" x 15.7" Each Side |
| Table Change Time | 6 Seconds |
| Max. Weight on Table | 1,100 lbs. (2x550 lbs.) |
| Axis Travel | X = 20.5", Y = 15.7", Z = 13" |
| Rapid Traverse Rates | 2,204 IPM (X,Y,Z Axes) |
| Spindle Speeds | 15,000 RPM (Direct Drive) |
| Spindle Taper | BT-30 |
| Spindle Motor | 18.9 HP (14.1 kW) |
| Automatic Tool Changer | 21 Positions (Turret Style) |
| Voltage | 220V / 60 Hz |
| Equipped With | Hyundai-iTrol Control, 200 PSI thru Spindle Coolant, Remote Manual Pulse Generator & RS-232 / Ethernet |
