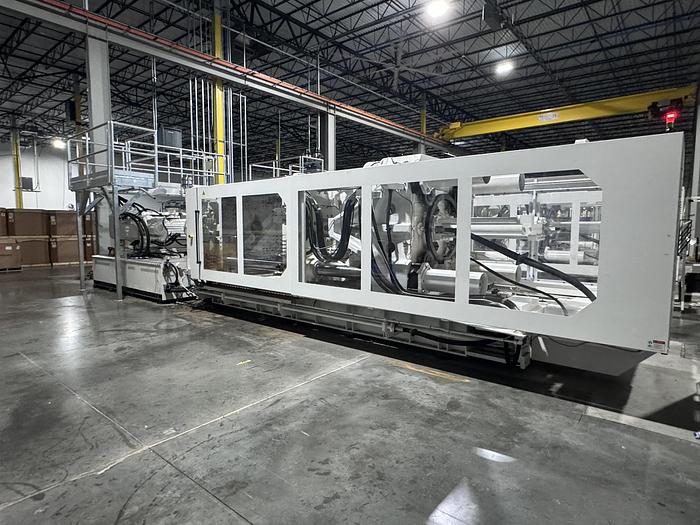

1012 Ton, 185.1 oz. MA9000II S/8400 Haitian Injection Molding Machine
1012 Ton, 185.1 oz. MA9000II S/8400 Haitian Injection Molding Machine
Available quantity: 1
orCall +1 508-792-4305
Description

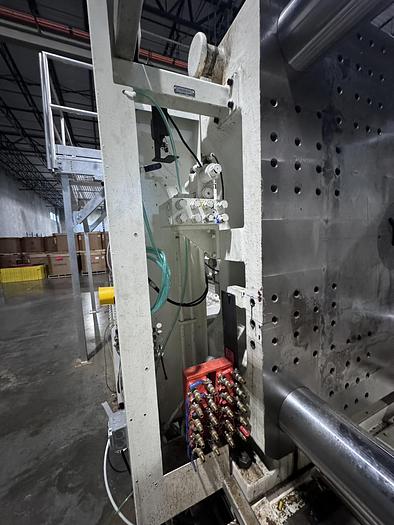

C Screw - Features; (1) Additional Core Pull on Stationary Platen, (4) Hydraulic Valve Gates, Increased Max./Min. Mold Height by 300mm, Water Manifolds, EU67 Interface for Secondary Injection Unit, Low Machine Hours: 2220
Specifications
| Manufacturer | Haitian |
| Model | MA 9000II S/8400 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 12914 |
| US Tonnage | 1012 |
| Shot Size (oz. of PS) | 185.1 |
| Screw Diameter | 120 mm |
| Platen Size (in.) | 62.2 x 62.99 |
| Tiebar Spacing (HxV) in. | 42.52 x 42.52 |
| Max Mold Height (in.) | 54.33 |
| Min Mold Height (in.) | 17.72 |
| Opening Stroke (in.) | 44.09 |
| Open Daylight (in.) | 98.42 |
| Ejector Stroke (in.) | 11.81 |
| Voltage | 460V/3P/60Hz |
