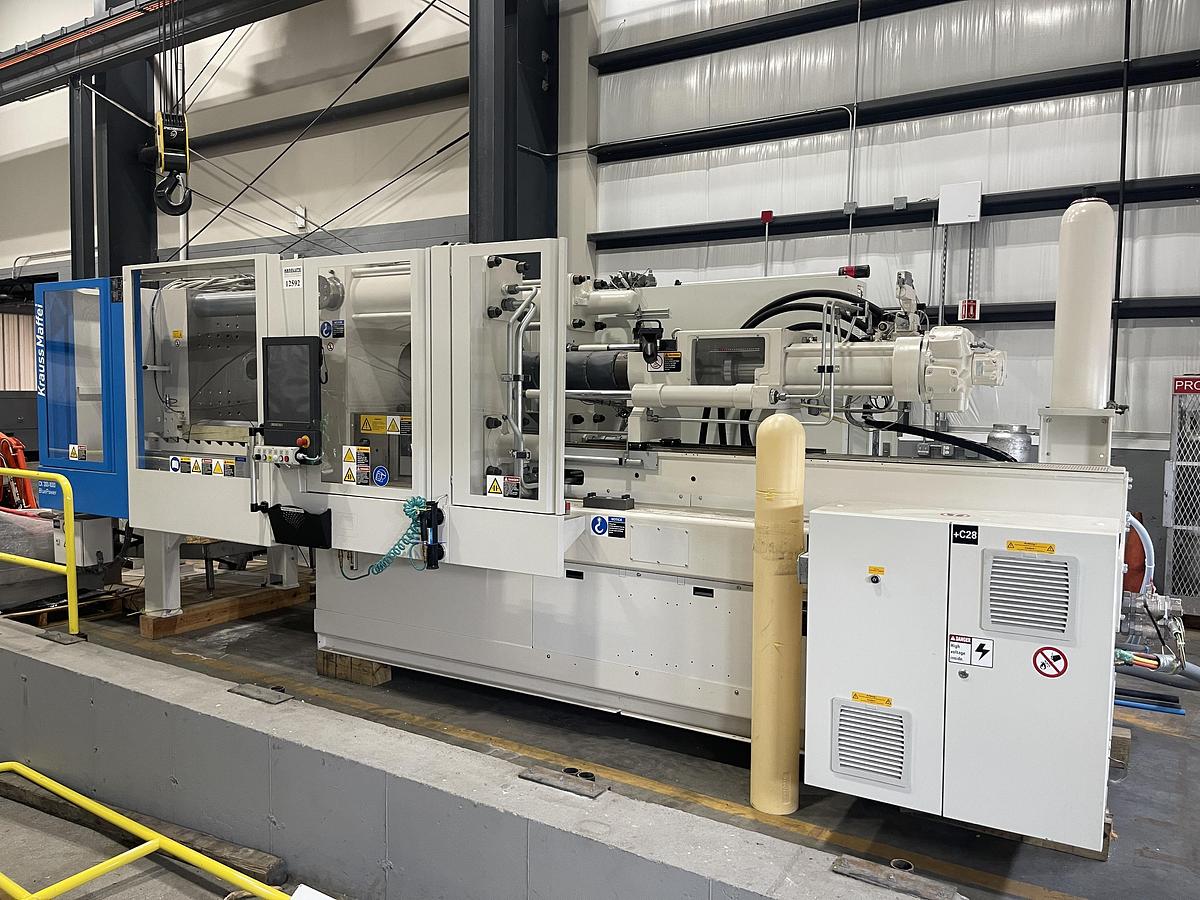

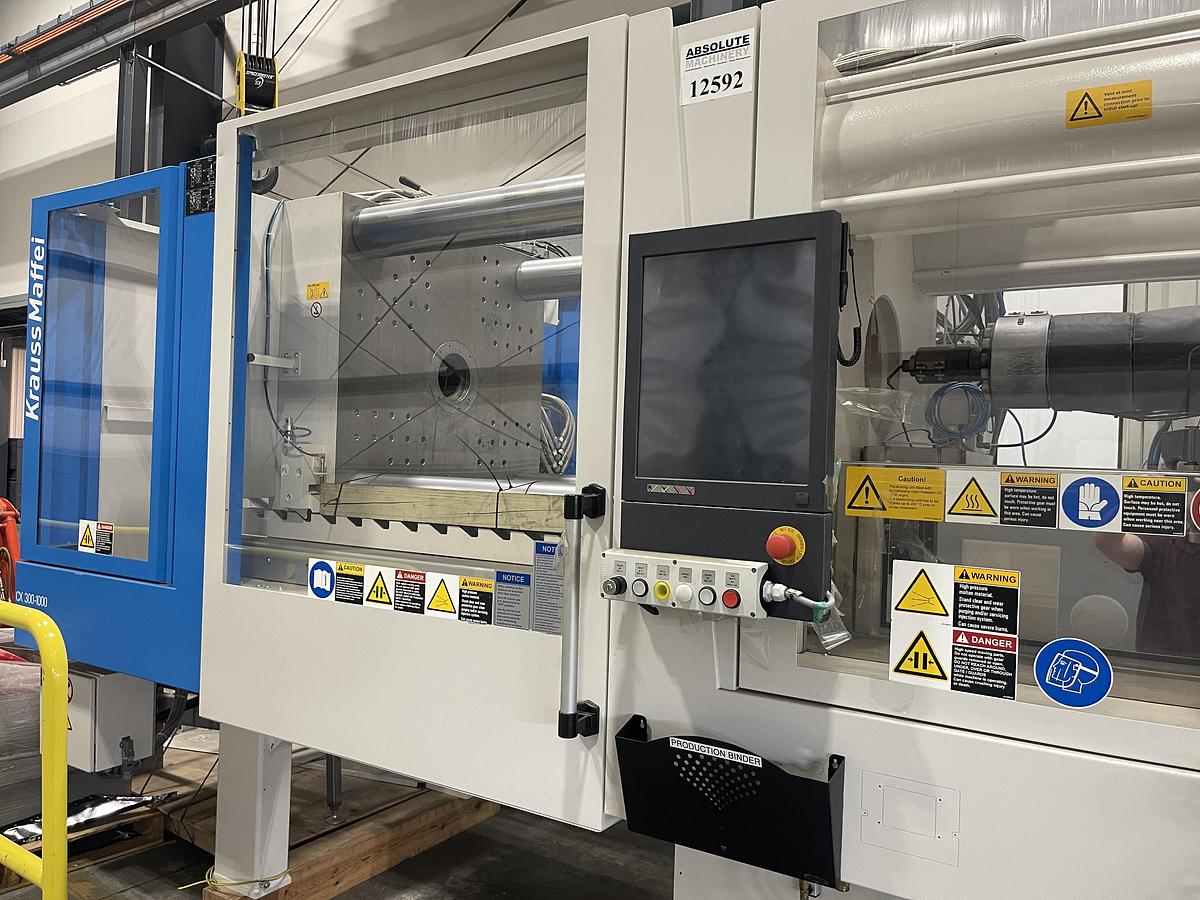

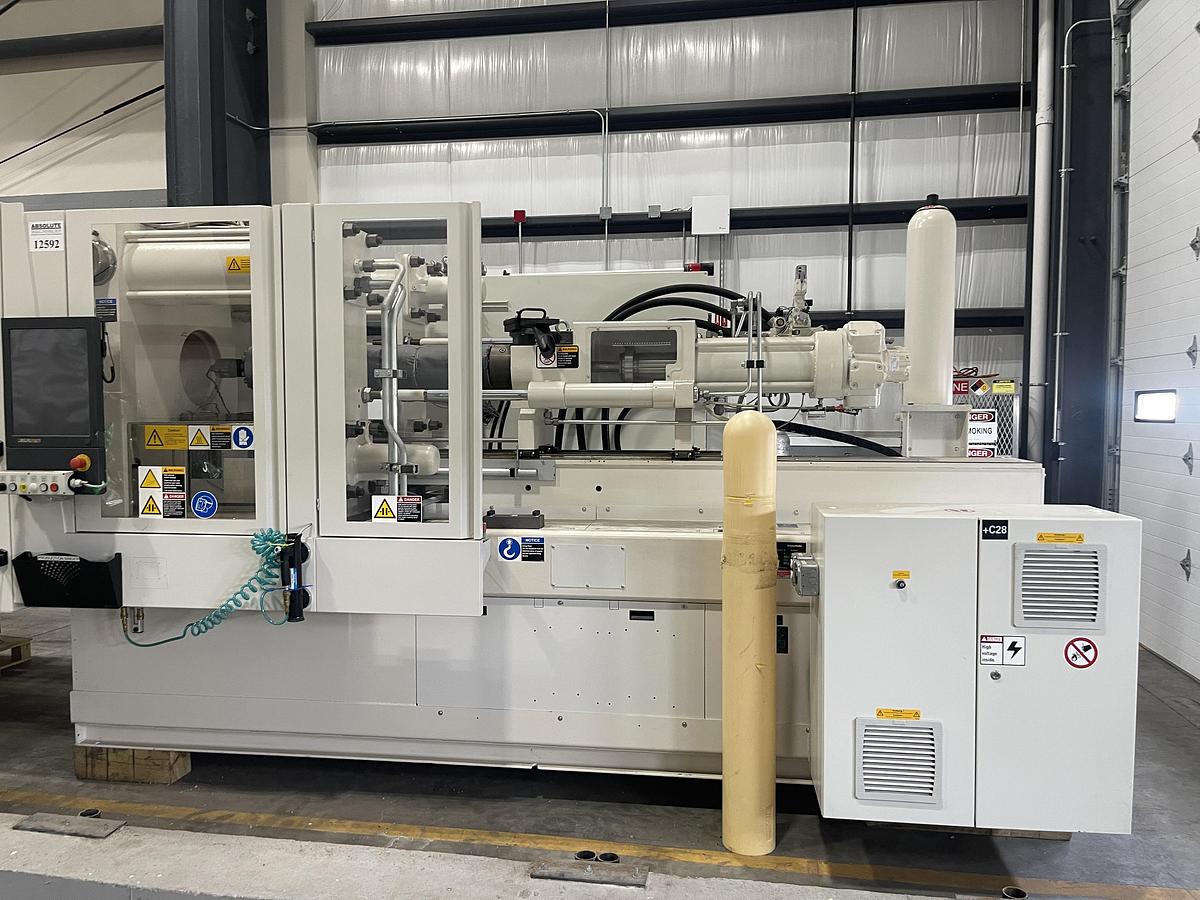

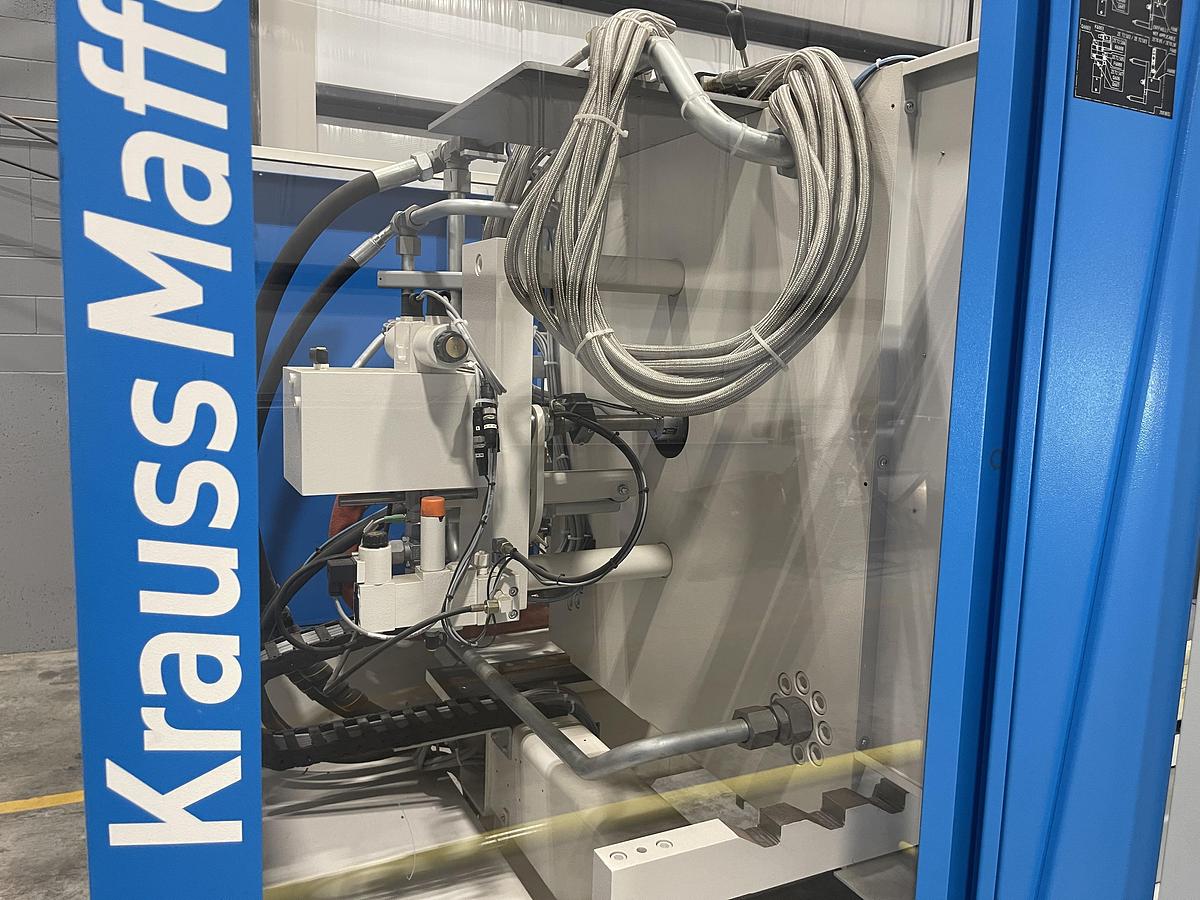

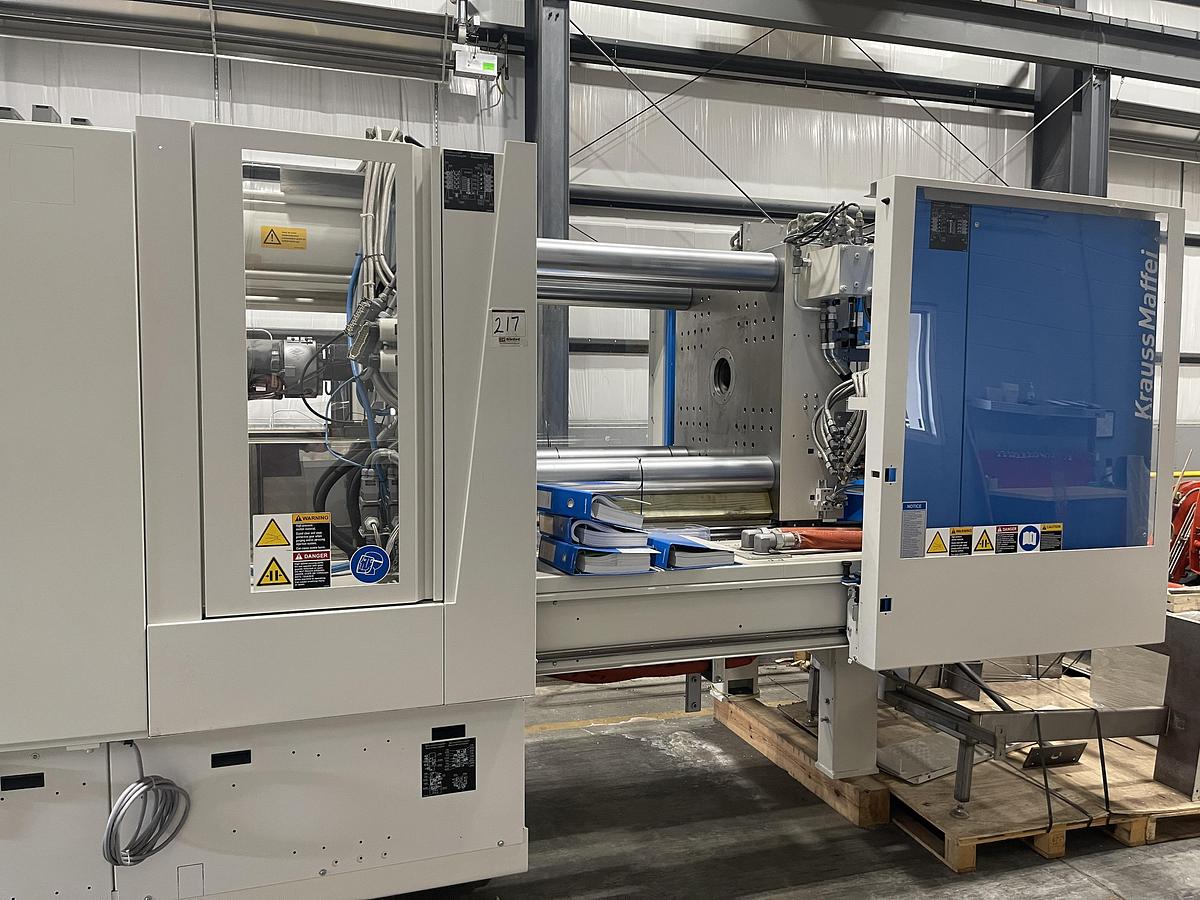

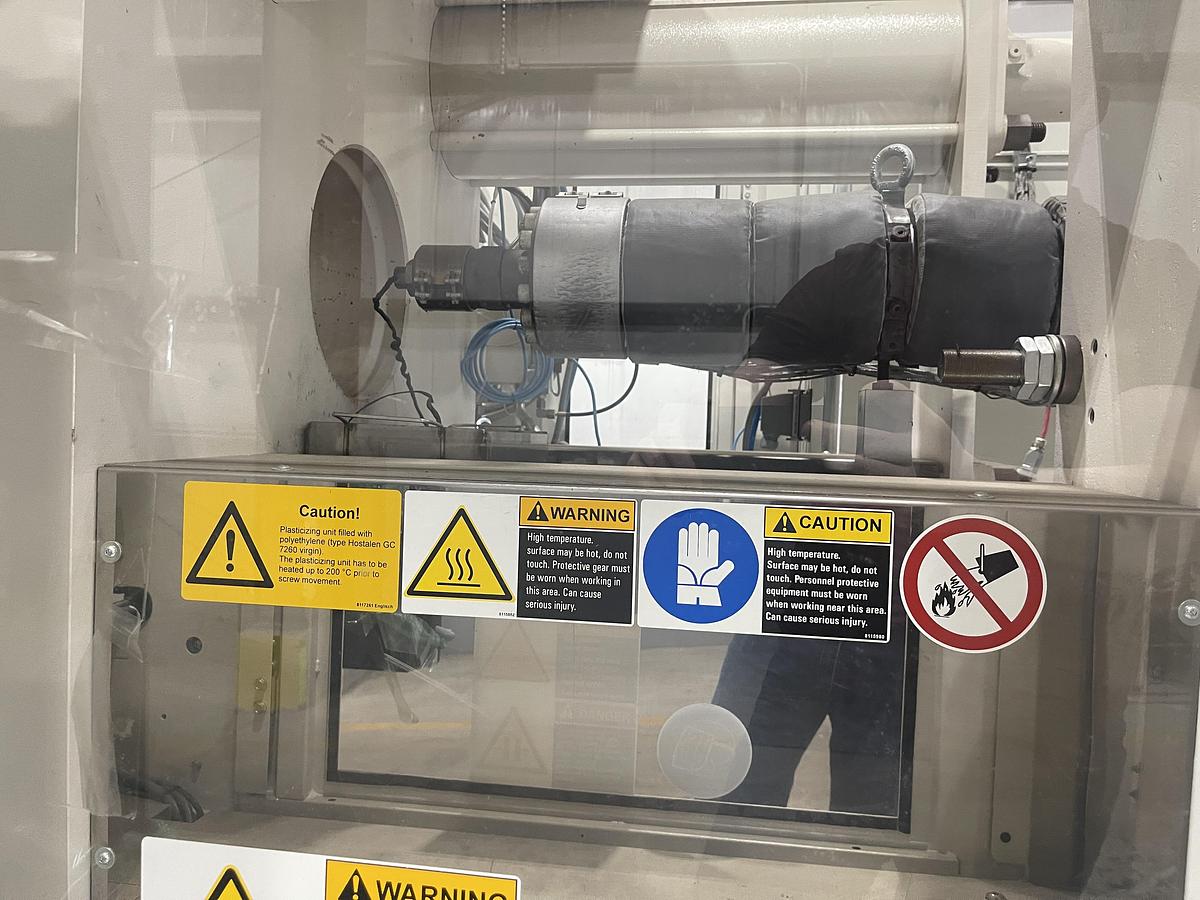

330 ton, 13.6 oz. Krauss Maffei Injection Molding Machine (2016)

330 ton, 13.6 oz. Krauss Maffei Injection Molding Machine (2016)

Available quantity:1

orCall +1 508-792-4305

Description

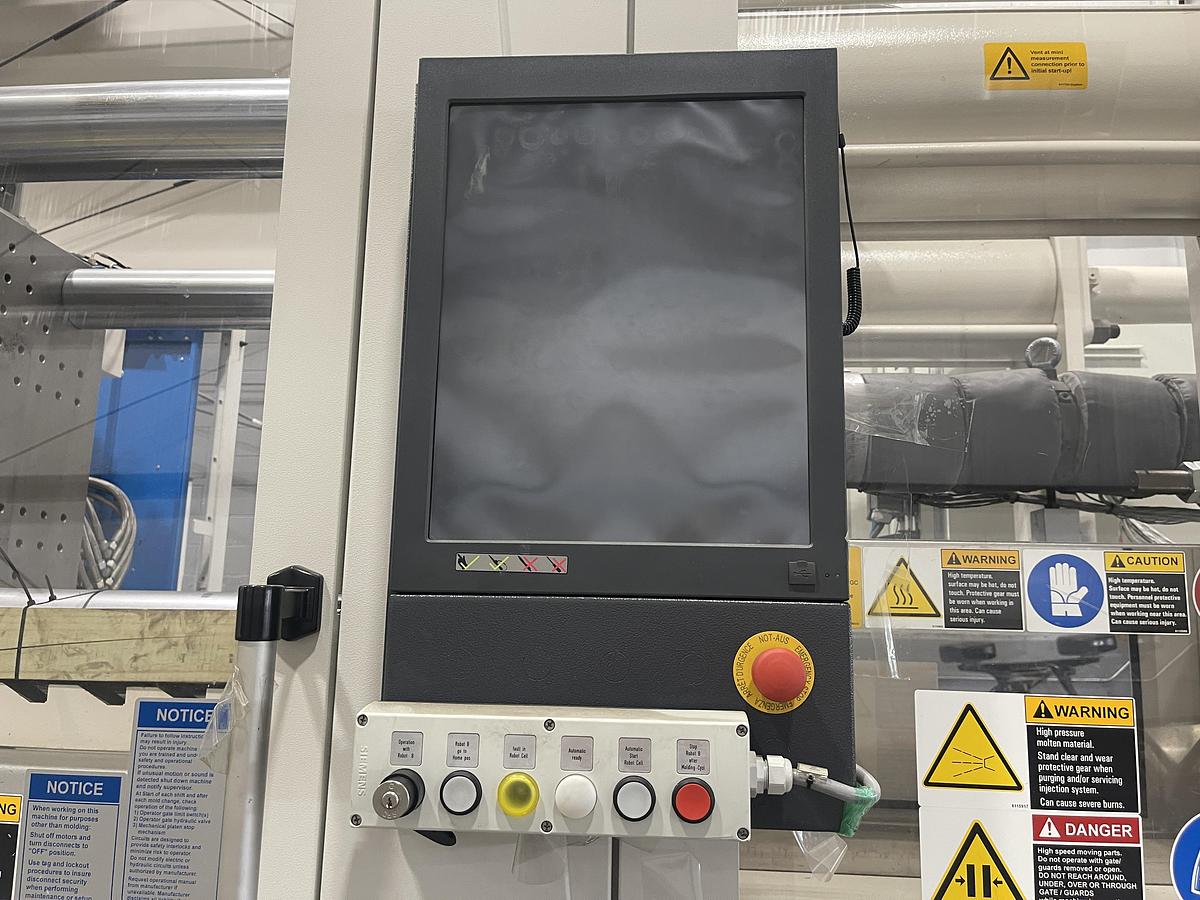

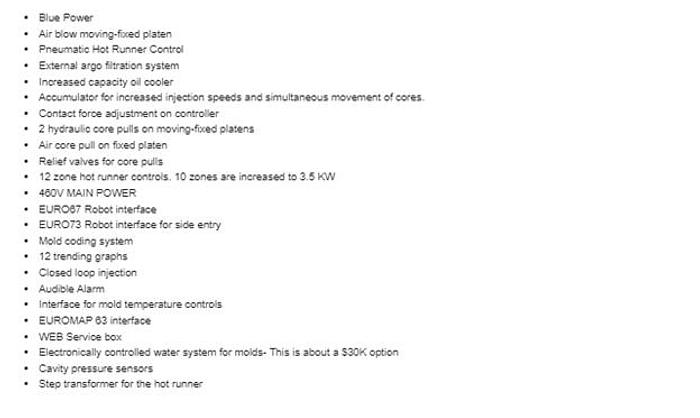

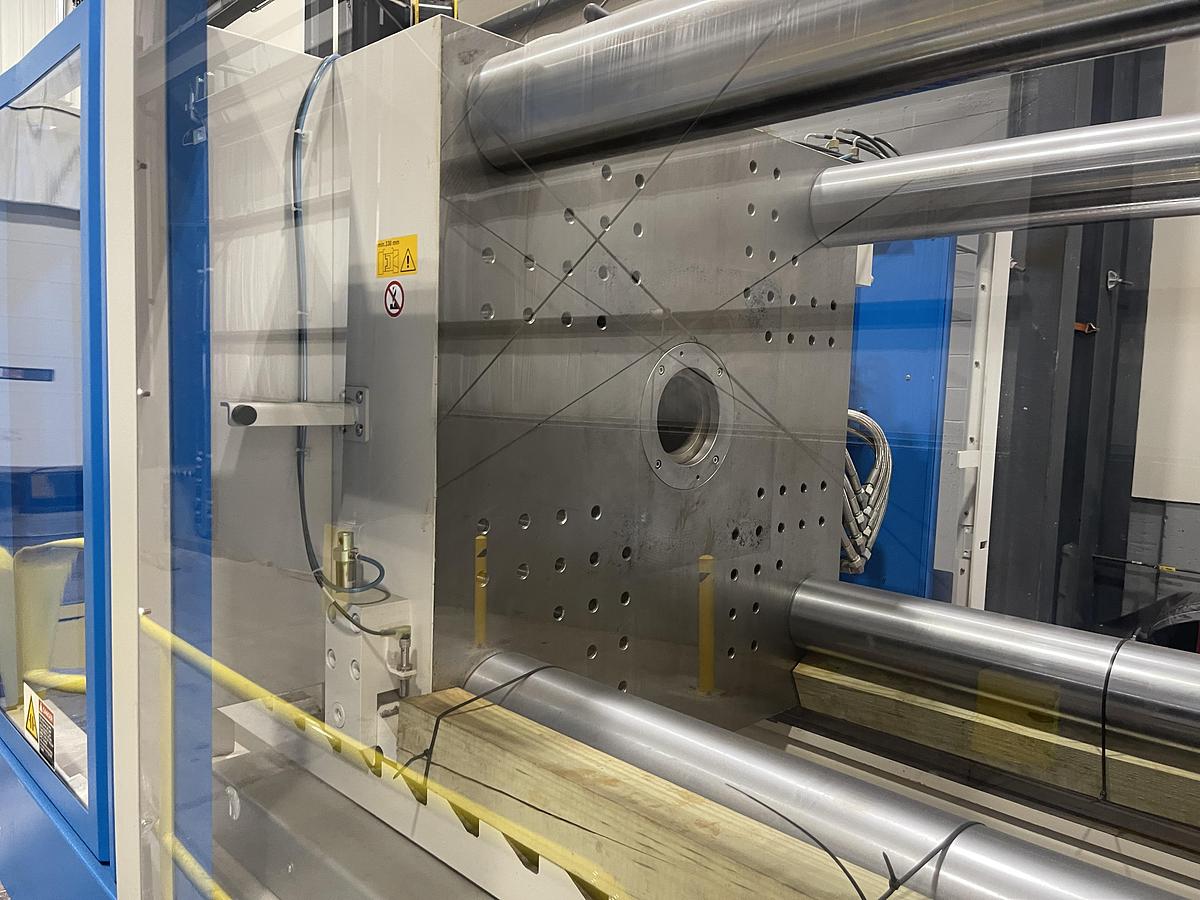

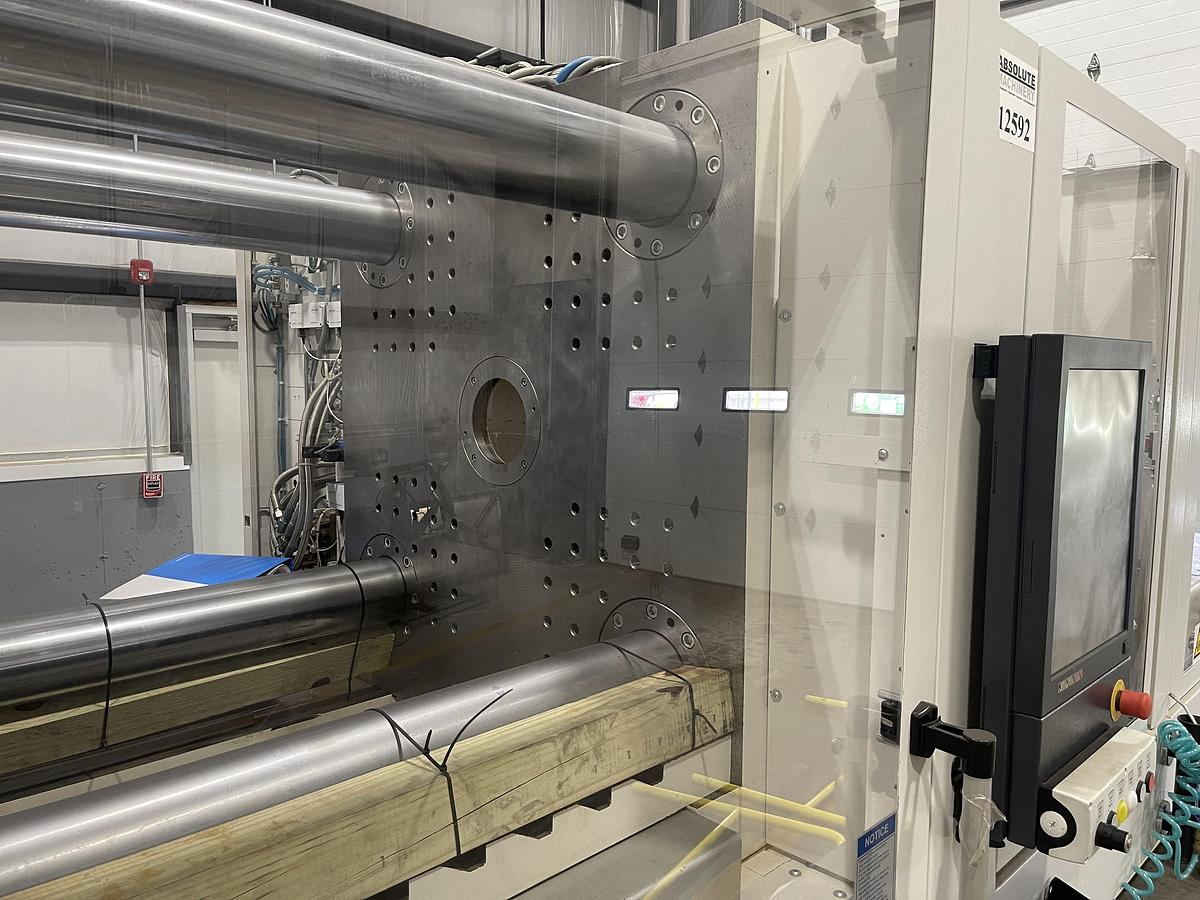

Capacity: 330 Ton | Shot Size: 13.6 oz | Mold Opening Force: 19 Ton | Travel Opening Force (Movable Platen): 9.7 Ton | Travel Closing Force (Movable Platen): 7.6 Ton | Platen Size: 39.20" x 41.37" | Platen Size (Extended Horizontal): 42.36" x 41.37" | Platen Size (Wide Platen Option): 46.30" x 44.92" | Tie Bar Spacing: 24.82" x 24.82" | Mold Opening Stroke: 32.31" | Min Mold Height: 13" | Max Daylight: 45.31" | Ejector Stroke: 7.88" | Ejector Force (Forward/Backward): 6.5 / 3.2 Ton | Control: MC6 | Hours: 7,581 | Includes: Air Core Pull on Fixed Platen, Blue Power, EURO67 Robot Interface, EURO73 Robot Interface for Side Entry, Accumulator for injection speeds and simultaneous core movements, Integrated 12 zone hot runner control, electronic water control system

Specifications

ManufacturerKrauss Maffei
Model300-1000CX
Year2016
ConditionUsed
Stock Number12592
US Tonnage330
Shot Size (oz.)13.6
Length256
Width87
Height91
Weight31967 lbs
