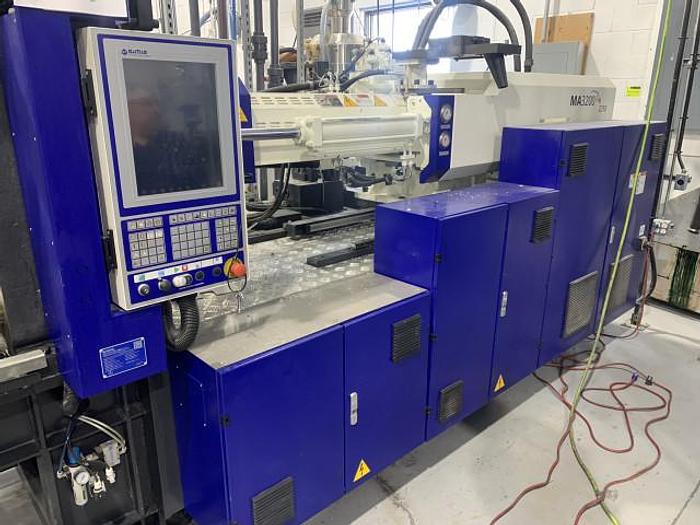

360 Ton, 45.6 oz. Haitian Injection Molding Machine

Tonnage: 360 US | Shot Size: 45.6 oz. | Screw Diameter: 75mm | Clamp Stroke: 25.2" | Min/Max Mold Height: 9.84"/26.77" | Platen Size: 38.98" x 38.98" | Distance Between Tiebars: 26.77" x 26.77" | Daylight Max: 51.97" | Ejector Stroke: 6.3" | Voltage: 460/3/60 | Control: KEBA 2580 | Options: Independent control of Ejectors or Cores during clamp open/close(eject on the fly), Mold open/close proportional valve control for higher speed and precision applications with robot positioning, (1) Hydraulic vale gate, SPI Robot Interface, Air Blow
